Specifications

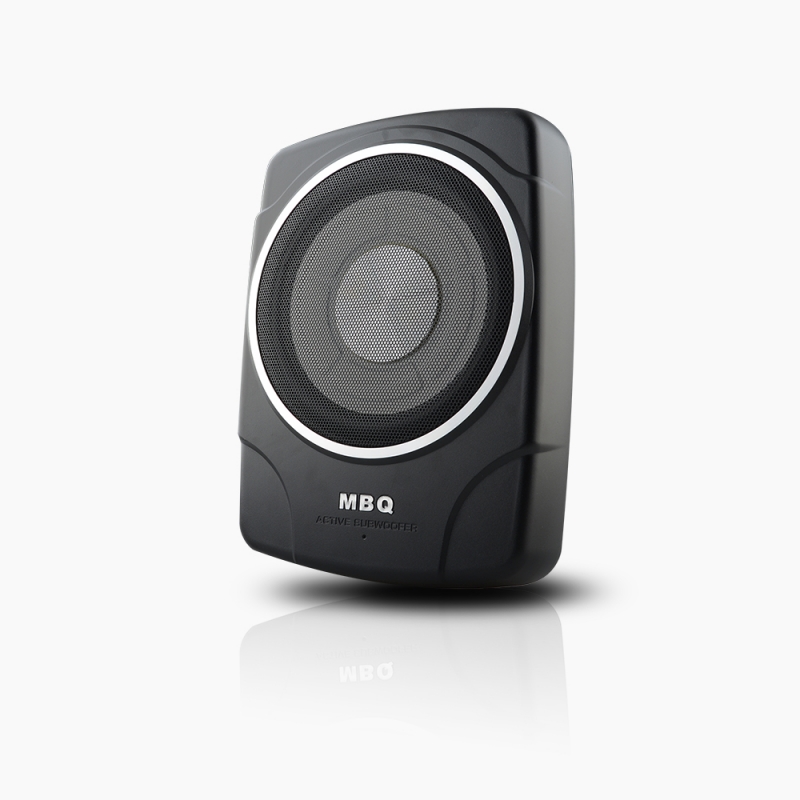

| Model | AW-10C |
| Woofer Speaker Size | 10" |
| Max Output Power | 180W |
| RMS Output Power | 120W |
| Built-in Amplifier Type | Class AB |
| Frequency Response | 50Hz-100Hz |
| Impedance | 2+2 Ω |
| Voice Coil | Dual Voice Coil |
| Sensitivity | 91dB |
| Input Sensitivity (Distortion level 1%) | RCA input 82mV, Speaker input 0.8V |
| Working Voltage | 14.4V(10-16V) |
| Phase Switch | 0°/180° |
| Auto Turn ON/OFF | High level input only |
| Fuse |
10A |
| Woofer Cone Material | Aluminum |
| Woofer Magnet Material | Ferrite |
| Enclosure Material | Cast Aluminum Sealed Enclosure |
| Product Dimensions |
370x275x70mm |
| Net Weight | 5.8kg |

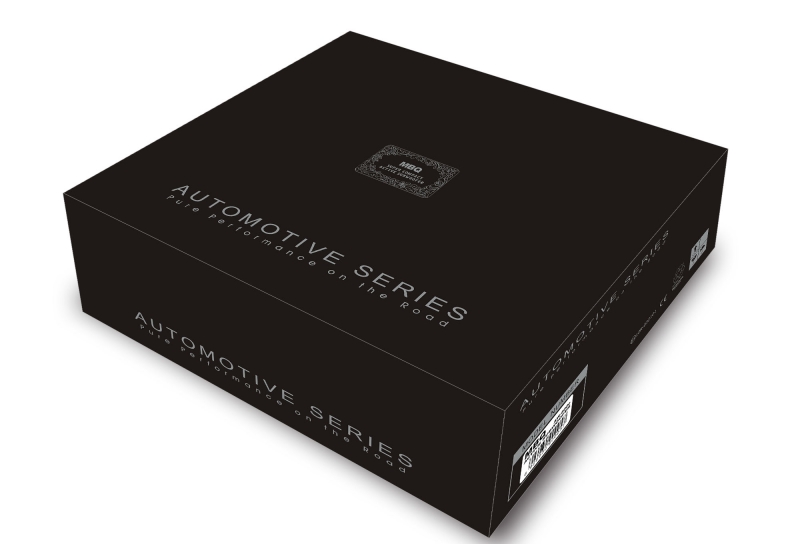

Packaging
